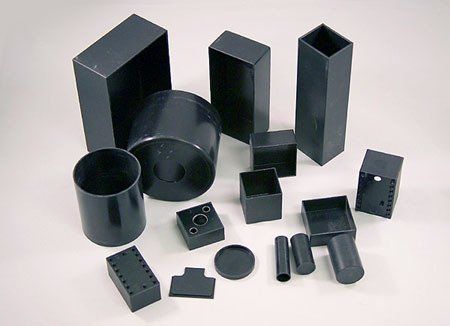

MOLDED ENCAPSULATED CASES
AE&M has tools available for many sizes of compression molding cases made of Thermoset material. (such as Diallyl Phthalate and phenolic “DAP”) Certifies to Mil-M-14, Type SDG -F.
Minimum order on DAP compression molding material in stock is 50 pieces.
Many case sizes are available from stock. Lead-time for out of stock items is typically 4-6 weeks.
Also, injection molding of thermoplastics materials (such as ABS, PPS and LCP) are available at your request.
All plastic molding compounds used meet the requirements of UL94-V0.
Please refer below for DAP Cases standard list, if you don’t see what you are looking for, please email you spec, and we will help you with your requirement.
SECONDARY OPERATIONS AVAILABLE: Drilling holes, slots, installation of terminal and Insert, center post and sanding.
Standard DAP Cases*
(Listed in Outer Dimensions)
*Customized Cases can be ordered through the Contact Form below.
Round Molded Dap
| PART NUMBER | WIDTH | LENGTH | HEIGHT | WALL |
|---|---|---|---|---|
| R0125-01 | 0.125" | 0.250" | 0.010" | 0.020" |
| R0125-02 | 0.125" | 0.375" | 0.010" | 0.020" |
| R0150-02 | 0.150" | 1.000" | 0.010" | 0.015" |
| R0155-04 | 0.155" | 0.500" | 0.020" | 0.020" |
| R0250-05 | 0.250" | 0.500" | 0.020" | 0.020" |
| R0250-08 | 0.250" | 1.000" | 0.020" | 0.020" |
| R0290-01 | 0.290" | 0.375" | 0.017" | 0.020" |
| R0300-03 | 0.300" | 0.750" | 0.020" | 0.020" |
| R0375-01 | 0.375" | 0.375" | 0.020" | 0.020" |
| R0375-03 | 0.375" | 0.625" | 0.020" | 0.020" |
| R0375-05 | 0.375" | 1.000" | 0.0250" | 0.020" |
| R0375-06 | 0.375" | 1.250" | 0.025" | 0.020" |
| R0400-05 | 0.400" | 2.200" | 0.020" | 0.020" |
| R0500-01 | 0.500" | 0.250" | 0.020" | 0.020" |
| R0500-02 | 0.500" | 0.300" | 0.030" | 0.020" |
| R0500-03 | 0.500" | 0.475" | 0.030" | 0.020" |
| R0500-04 | 0.500" | 0.500" | 0.025" | 0.020" |
| R0500-05 | 0.500" | 0.550" | 0.025" | 0.020" |
| R0500-08 | 0.500" | 1.000" | 0.030" | 0.025" |
| R0520-03 | 0.520" | 0.530" | 0.020" | 0.020" |
| R0565-01 | 0.565" | 0.875" | 0.025" | 0.020" |
| R0750-01 | 0.750" | 0.375" | 0.030" | 0.030" |
| R0750-04 | 0.750" | 0.420" | 0.030" | 0.030" |
| R0750-05 | 0.750" | 0.450" | 0.025" | 0.025" |
| R0750-06 | 0.750" | 0.500" | 0.025" | 0.025" |
| R0750-10 | 0.750" | 0.750" | 0.025" | 0.025" |
| R0750-13 | 0.750" | 1.000" | 0.030" | 0.025" |
| R0750-15 | 0.750" | 1.500" | 0.030" | 0.025" |
| R0750-16 | 0.750" | 2.000" | 0.030" | 0.030" |
| R0880-01 | 0.880" | 0.490" | 0.030" | 0.025" |
| R1000-04 | 1.000" | 0.500" | 0.030" | 0.030" |
| R1000-08 | 1.000" | 0.750" | 0.030" | 0.030" |
| R1000-10 | 1.000" | 1.000" | 0.030" | 0.025" |
| R1000-11 | 1.000" | 1.875" | 0.050" | 0.025" |
| R1000-11 | 1.000" | 0.875" | 0.050" | 0.030" |
| R1010-01 | 1.010" | 1.250" | 0.030" | 0.030" |
| R1060-01 | 1.060" | 0.130" | 0.030" | 0.030" |
| R1060-03 | 1.060" | 0.500" | 0.030" | 0.030" |
| R1060-09 | 1.060" | 2.150" | 0.035" | 0.030" |
| R1125-02 | 1.125" | 0.593" | 0.030" | 0.030" |
| R1125-05 | 1.125" | 1.000" | 0.035" | 0.030" |
| R1240-05 | 1.240" | 3.000" | 0.060" | 0.045" |
| R1250-08 | 1.250" | 1.000" | 0.040" | 0.035" |
| R1250-10 | 1.250" | 1.250" | 0.035" | 0.035" |
| R1250-11 | 1.250" | 2.150" | 0.050" | 0.030" |
| R1340-01 | 1.340" | 0.620" | 0.035" | 0.035" |
| R1375-01 | 1.375" | 0.500" | 0.030" | 0.035" |
| R1375-04 | 1.375" | 0.750" | 0.035" | 0.030" |
| R1375-06 | 1.375" | 1.000" | 0.040" | 0.035" |
| R1375-08 | 1.375" | 1.500" | 0.035" | 0.035" |
| R1400-01 | 1.400" | 1.000" | 0.035" | 0.040" |
| R1400-04 | 1.400" | 1.750" | 0.035" | 0.030" |
| R1500-01 | 1.500" | 0.625" | 0.035" | 0.040" |
| R1500-03 | 1.500" | 0.750" | 0.035" | 0.035" |
| R1500-05 | 1.500" | 1.000" | 0.035" | 0.050" |
| R1500-06 | 1.500" | 1.500" | 0.035" | 0.040" |
| R1700-03 | 1.700" | 0.980" | 0.035" | 0.040" |
| R1750-03 | 1.750" | 2.000" | 0.040" | 0.035" |
| R2000-06 | 2.000" | 2.000" | 0.040" | 0.035" |
| R2000-06 | 2.000" | 2.000" | 0.040" | 0.035" |
| R2500-05 | 2.500" | 2.025" | 0.040" | 0.035" |
| R2750-01 | 2.750" | 1.000" | 0.060" | 0.040" |
| R2750-04 | 2.750" | 2.000" | 0.075" | 0.040" |
| R2750-05 | 2.750" | 3.000" | 0.060" | 0.040" |
| R3000-01 | 3.000" | 1.170" | 0.060" | 0.040" |
| R3000-03 | 3.000" | 2.000" | 0.060" | 0.040" |
| R3100-01 | 3.100" | 1.380" | 0.050" | 0.040" |
Square Molded Dap
| PART NUMBER | WIDTH | LENGTH | HEIGHT | WALL |
|---|---|---|---|---|
| S0300-01 | 0.300" | 0.300" | 0.200" | 0.020" |
| S0300-03 | 0.300" | 0.300" | 0.300" | 0.020" |
| S0300-04 | 0.300" | 0.300" | 0.700" | 0.015" |
| S0375-02 | 0.375" | 0.375" | 0.250" | 0.020" |
| S0375-03 | 0.375" | 0.375" | 0.375" | 0.020" |
| S0375-05 | 0.375" | 0.375" | 0.500" | 0.020" |
| S0375-07 | 0.375" | 0.375" | 0.750" | 0.020" |
| S0385-01 | 0.385" | 0.385" | 0.245" | 0.020" |
| S0390-01 | 0.390" | 0.390" | 0.500" | 0.020" |
| S0400-04 | 0.400" | 0.400" | 0.500" | 0.020" |
| S0400-05 | 0.400" | 0.400' | 0.750" | 0.020" |
| S0495-01 | 0.495" | 0.495" | 0.380" | 0.020" |
| S0500-01 | 0.500" | 0.500" | 0.300" | 0.020" |
| S0500-02 | 0.500" | 0.500" | 0.390" | 0.020" |
| S0500-04 | 0.500" | 0.500" | 0.500" | 0.020" |
| S0500-05 | 0.500" | 0.500" | 0.625" | 0.020" |
| S0500-06 | 0.500" | 0.500" | 0.750" | 0.020" |
| S0500-08 | 0.500" | 0.500" | 1.000" | 0.020" |
| S0615-01 | 0.615" | 0.615" | 0.500" | 0.025" |
| S0625-03 | 0.625" | 0.625" | 0.500" | 0.020" |
| S0625-05 | 0.625" | 0.625" | 0.625" | 0.020" |
| S0625-06 | 0.625" | 0.625" | 0.750" | 0.030" |
| S0655-01 | 0.655" | 0.655" | 0.375" | 0.030" |
| S0680-02 | 0.680" | 0.680" | 0.680" | 0.025" |
| S0700-01 | 0.700" | 0.700" | 0.300" | 0.025" |
| S0700-03 | 0.700" | 0.700" | 0.400" | 0.025" |
| S0700-04 | 0.700" | 0.700" | 0.500" | 0.025" |
| S0750-01 | 0.750' | 0.750" | 0.250" | 0.025" |
| S0750-03 | 0.750' | 0.750" | 0.375" | 0.030" |
| S0750-06 | 0.750' | 0.750" | 0.500" | 0.025" |
| S0750-07 | 0.750' | 0.750" | 0.750" | 0.030" |
| S0750-08 | 0.750' | 0.750" | 1.000" | 0.030" |
| S0870-01 | 0.870” | 0.870” | 0.720" | 0.030" |
| S0875-02 | 0.875" | 0.875" | 0.375" | 0.025" |
| S0875-06 | 0.875' | 0.875" | 0.750" | 0.030" |
| S1000-03 | 1.000" | 1.000" | 0.250" | 0.030" |
| S1000-06 | 1.000" | 1.000" | 0.375" | 0.030" |
| S1000-09 | 1.000" | 1.000" | 0.500" | 0.030" |
| S1000-11 | 1.000" | 1.000" | 0.625" | 0.030" |
| S1000-12 | 1.000" | 1.000" | 0.750" | 0.030" |
| S1000-15 | 1.000" | 1.000" | 1.000" | 0.030" |
| S1000-17 | 1.000" | 1.000" | 1.625" | 0.045" |
| S1050-01 | 1.050" | 1.050" | 0.800" | 0.035" |
| S1050-03 | 1.050" | 1.050" | 1.000" | 0.035" |
| S1100-03 | 1.100" | 1.100" | 0.970" | 0.030" |
| S1125-01 | 1.125" | 1.125" | 0.375" | 0.035" |
| S1125-05 | 1.125" | 1.125" | 0.500" | 0.035" |
| S1125-07 | 1.125" | 1.125" | 0.625" | 0.030" |
| S1125-09 | 1.125" | 1.125" | 0.875" | 0.035" |
| S1140-01 | 1.140" | 1.140" | 1.080" | 0.035" |
| S1250-01 | 1.250" | 1.250" | 0.250" | 0.040" |
| S1250-02 | 1.250" | 1.250" | 0.500" | 0.030" |
| S1250-04 | 1.250" | 1.250" | 0.875" | 0.040" |
| S1250-05 | 1.250" | 1.250" | 1.000" | 0.035" |
| S1250-06 | 1.250" | 1.250" | 1.500" | 0.050" |
| S1375-01 | 1.375" | 1.375" | 0.625" | 0.040" |
| S1375-02 | 1.375" | 1.375" | 1.000" | 0.040" |
| S1400-01 | 1.400" | 1.400" | 0.500" | 0.035" |
| S1400-02 | 1.400" | 1.400" | 0.750" | 0.035" |
| S1500-02 | 1.500" | 1.500" | 0.375" | 0.035" |
| S1500-04 | 1.500" | 1.500" | 0.500" | 0.035" |
| S1500-07 | 1.500" | 1.500" | 0.750" | 0.040" |
| S1500-08 | 1.500" | 1.500" | 1.000" | 0.040" |
| S1625-01 | 1.625" | 1.625" | 1.000" | 0.040" |
| S1750-03 | 1.750" | 1.750" | 1.000" | 0.040" |
| S2000-01 | 2.000" | 2.000" | 0.405" | 0.040" |
| S2000-03 | 2.000" | 2.000" | 0.500" | 0.040" |
| S2000-05 | 2.000" | 2.000" | 0.750" | 0.040" |
| S2000-07 | 2.000" | 2.000" | 1.000" | 0.040" |
| S2250-01 | 2.250" | 2.250" | 1.150" | 0.050" |
| S2400-01 | 2.400" | 2.400" | 1.250" | 0.070" |
| S2500-03 | 2.500" | 2.500" | 0.500" | 0.040" |
| S2500-04 | 2.500" | 2.500" | 0.625" | 0.040" |
| S2500-06 | 2.500" | 2.500" | 1.300" | 0.040" |
| S2750-01 | 2.750" | 2.750" | 0.750" | 0.060" |
| S2750-02 | 2.750" | 2.750" | 0.890" | 0.050" |
| S3000-01 | 3.000" | 3.000" | 0.890" | 0.065" |
| S3000-02 | 3.000" | 3.000" | 1.750" | 0.065" |
Rectangular Molded Dap
| PART NUMBER | WIDTH | LENGTH | HEIGHT | WALL |
|---|---|---|---|---|
| L0125-04 | .125" | 0.375" | 0.250" | 0.015" |
| L0125-05 | .125" | 0.375" | 0.375" | 0.015" |
| L0125-09 | .125" | 0.500" | 0.280" | 0.015" |
| L0125-10 | .125" | 0.500" | 0.375" | 0.015" |
| L0150-C1 | .150" | 0.300" | 0.700" | 0.020" |
| L0250-06 | 0.250" | 0.500" | 0.375" | 0.015" |
| L0250-07 | 0.250" | 0.500" | 0.500" | 0.015" |
| L0250-14 | 0.250" | 0.750" | 0.375" | 0.020" |
| L0250-19 | 0.250" | 1.000" | 0.500" | 0.020" |
| L0250-27 | 0.250" | 2.000" | 1.000" | 0.035" |
| L0250-28 | 0.250" | 2.500" | 0.250" | 0.030" |
| L0250-29 | 0.250" | 3.000" | 0.750" | 0.035" |
| L0375-03 | 0.375" | 0.500" | 0.375" | 0.020" |
| L0375-06 | 0.375" | 0.750" | 0.375" | 0.025" |
| L0375-07 | 0.375" | 0.750" | 0.625" | 0.030" |
| L0375-13 | 0.375" | 1.000" | 0.750" | 0.025" |
| L0375-16 | 0.375" | 1.500" | 0.500" | 0.030" |
| L0375-19 | 0.375" | 6.000" | 0.500" | 0.025" |
| L0400-S1 | 0.400" | 0.800" | 0.250" | 0.035" |
| L0400-08 | 0.400" | 0.780" | 0.300" | 0.025" |
| L0400-14 | 0.400" | 1.000" | 0.500" | 0.030" |
| L0400-21 | 0.400" | 1.750" | 1.140" | 0.045" |
| L0450-01 | 0.450" | 0.500" | 0.500" | 0.030" |
| L0450-09 | 0.450" | 2.000" | 0.750" | 0.035" |
| L0450-10 | 0.450" | 3.000" | 0.375" | 0.030" |
| L0500-04 | 0.500" | 0.625" | 0.375" | 0.025" |
| L0500-14 | 0.500" | 0.750" | 0.250" | 0.030" |
| L0500-18 | 0.500" | 0.750" | 1.000" | 0.030" |
| L0500-28 | 0.500" | 1.000' | 0.500" | 0.025" |
| L0500-30 | 0.500" | 1.000" | 0.750" | 0.025" |
| L0500-31 | 0.500" | 1.000" | 1.000" | 0.030" |
| L0500-35 | 0.500" | 1.250" | 0.500" | 0.030" |
| L0500-38 | 0.500" | 1.375" | 0.500" | 0.030" |
| L0500-42 | 0.500" | 1.500" | 0.500" | 0.030" |
| L0500-44 | 0.500" | 1.500" | 0.750" | 0.030" |
| L0500-45 | 0.500" | 1.500" | 1.000" | 0.030" |
| L0500-55 | 0.500" | 2.000" | 1.000" | 0.030" |
| L0500-60 | 0.500" | 3.000" | 1.000" | 0.045" |
| L0510-C1 | 0.510" | 0.640" | 1.875" | 0.030" |
| L0510-04 | 0.510" | 0.760" | 0.470" | 0.025" |
| L0560-01 | 0.560" | 1.570" | 1.280" | 0.030" |
| L0730-01 | 0.730" | 1.360" | 1.350" | 0.030" |
| L0750-05 | 0.750" | 1.000" | 0.500" | 0.035" |
| L0750-06 | 0.750" | 1.000" | 0.750" | 0.025" |
| L0750-07 | 0.750" | 1.000" | 1.125" | 0.035" |
| L0750-10 | 0.750" | 1.130" | 1.560" | 0.040" |
| L0750-11 | 0.750" | 1.250" | 0.500" | 0.030" |
| L0750-13 | 0.750" | 1.250" | 1.000" | 0.035" |
| L0750-15 | 0.750" | 1.375" | 0.750" | 0.030" |
| L0750-21 | 0.750" | 1.500" | 0.750" | 0.040" |
| L0750-29 | 0.750" | 2.000" | 0.750" | 0.035" |
| L0750-34 | 0.750" | 3.000" | 0.750" | 0.040" |
| L0750-36 | 0.750" | 3.500" | 0.750" | 0.045" |
| L0750-38 | 0.750" | 4.500" | 0.750" | 0.060" |
| L0750-39 | 0.750" | 5.000" | 0.750" | 0.060" |
| L0750-41 | 0.750" | 6.000" | 0.750" | 0.070" |
| L0770-01 | 0.770" | 0.940" | 0.770" | 0.025" |
| L0875-01 | 0.875" | 1.000" | 0.500" | 0.025" |
| L0875-06 | 0.875" | 1.250" | 0.750" | 0.030" |
| L0875-07 | 0.875" | 1.375" | 0.750" | 0.035" |
| L0875-10 | 0.875" | 1.750" | 0.750" | 0.040" |
| L0875-14 | 0.875" | 2.000" | 0.880" | 0.035" |
| L0875-16 | 0.875" | 2.250" | 0.750" | 0.050" |
| L0950-C1 | 0.950" | 1.140" | 4.000" | 0.050" |
| L1000-02 | 1.000" | 1.125" | 0.820" | 0.030" |
| L1000-04 | 1.000" | 1.125" | 1.625" | 0.045" |
| L1000-08 | 1.000" | 1.250" | 0.500" | 0.030" |
| L1000-11 | 1.000" | 1.250" | 1.000" | 0.035" |
| L1000-C1 | 1.000" | 1.340" | 1.000" | 0.030" |
| L1000-12 | 1.000" | 1.375" | 0.500" | 0.030" |
| L1000-18 | 1.000" | 1.500" | 0.500" | 0.035" |
| L1000-20 | 1.000" | 1.500" | 0.750" | 0.030" |
| L1000-21 | 1.000" | 1.500" | 1.000" | 0.035" |
| L1000-26 | 1.000" | 1.750" | 0.500" | 0.035" |
| L1000-35 | 1.000" | 2.000" | 0.500" | 0.035" |
| L1000-38 | 1.000" | 2.000" | 0.625" | 0.040" |
| L1000-40 | 1.000" | 2.000" | 1.000" | 0.040" |
| L1000-49 | 1.000" | 2.500" | 0.500" | 0.040" |
| L1000-50 | 1.000" | 2.500" | 1.000" | 0.045" |
| L1000-51 | 1.000" | 2.500" | 1.250" | 0.040" |
| L1000-56 | 1.000" | 3.000" | 1.000" | 0.050" |
| L1000-59 | 1.000" | 4.000" | 1.000" | 0.060" |
| L1000-62 | 1.000" | 5.000" | 1.000" | 0.070" |
| L1000-64 | 1.000" | 6.000" | 1.000" | 0.070" |
| L1200-12 | 1.200" | 2.400" | 1.350" | 0.050" |
| L1250-04 | 1.250" | 1.625" | 1.000" | 0.035" |
| L1250-06 | 1.250" | 1.800" | 0.500" | 0.035" |
| L1250-09 | 1.250" | 2.500" | 0.875" | 0.050" |
| L1250-10 | 1.250" | 2.500" | 1.000" | 0.050" |
| L1375-01 | 1.375" | 1.390" | 0.880" | 0.035" |
| L1375-02 | 1.375" | 1.500" | 1.188" | 0.045" |
| L1375-06 | 1.375" | 2.750" | 0.625" | 0.040" |
| L1375-07 | 1.375" | 2.750" | 0.875" | 0.040" |
| L1375-08 | 1.375" | 3.500" | 0.500" | 0.040" |
| L1500-01 | 1.500" | 1.750" | 0.750" | 0.035" |
| L1500-09 | 1.500" | 2.000" | 0.375" | 0.050" |
| L1500-13 | 1.500" | 2.000" | 1.310" | 0.040" |
| L1500-17 | 1.500" | 2.500" | 0.500" | 0.045" |
| L1500-19 | 1.500" | 2.500" | 0.750" | 0.045" |
| L1500-22 | 1.500" | 3.000" | 0.600" | 0.050" |
| L1500-23 | 1.500" | 3.125" | 0.900" | 0.050" |
| L1500-27 | 1.500" | 3.750" | 1.500" | 0.040" |
| L1500-29 | 1.500" | 4.500" | 0.750" | 0.060" |
| L1505-C1 | 1505" | 1.872" | 0.938" | 0.040" |
| L1625-02 | 1.625" | 2.000" | 1.125" | 0.045" |
| L1625-06 | 1.625" | 2.100" | 0.800" | 0.040" |
| L1625-07 | 1.625" | 2.275" | 2.100" | 0.045" |
| L1750-01 | 1.750" | 2.250" | 1.000" | 0.040" |
| L1750-04 | 1.750" | 2.500" | 0.750" | 0.050" |
| L1750-07 | 1.750" | 2.750" | 0.500" | 0.040" |
| L1750-09 | 1.750" | 3.700" | 0.750" | 0.060" |
| L2000-04 | 2.000" | 3.000" | 0.500" | 0.050" |
| L2000-06 | 2.000" | 3.000" | 1.000" | 0.050" |
| L2000-08 | 2.000" | 3.125" | 2.220" | 0.040" |
| L2000-13 | 2.000" | 4.000" | 1.000" | 0.070" |
| L2000-14 | 2.000" | 4.500" | 1.500" | 0.070" |
| L2125-01 | 2.125" | 2.500" | 2.000" | 0.050" |
| L2125-03 | 2.125" | 5.700" | 0.750" | 0.045" |
| L2500-01 | 2.500" | 3.000" | 0.500" | 0.060" |
| L2500-03 | 2.500" | 3.500" | 0.875" | 0.060" |
| L2500-04 | 2.500" | 3.500" | 1.250" | 0.060" |
| L2500-05 | 2.500" | 3.500" | 1.575" | 0.060" |
| L2530-S1 | 2.530" | 3.530" | 2.000" | 0.070" |
| L2625-01 | 2.625" | 3.125" | 0.800" | 0.060" |
| L2625-02 | 2.625" | 3.125" | 1.000" | 0.060" |
| L2625-03 | 2.625" | 3.125" | 1.250" | 0.060" |
| L2750-01 | 2.750" | 4.000" | 2.250" | 0.050" |
| L2750-02 | 2.750" | 4.000" | 2.750" | 0.050" |
| L2750-04 | 2.750" | 4.100" | 2.750" | 0.060" |
| L3000-01 | 3.000" | 3.600" | 1.675" | 0.050" |
| L3000-02 | 3.000" | 4.000" | 0.500" | 0.060" |
| L3000-03 | 3.000" | 4.500" | 1.000" | 0.070" |
| L3000-04 | 3.000" | 4.625" | 1.250" | 0.060" |
| L3125-01 | 3.125" | 3.500" | 0.800" | 0.060" |
| L3300-01 | 3.300" | 4.200" | 0.400" | 0.040" |
| L3300-02 | 3.300" | 4.200" | 0.625" | 0.070" |
| L4000-01 | 4.000" | 4.500" | 2.300" | 0.070" |
TO ORDER, PLEASE CALL, FAX, OR EMAIL YOUR RFQ WITH YOUR DRAWING AND INFORMATION
Sign up to our newsletter
